Cap. 1250 USGPM, Head 100 M

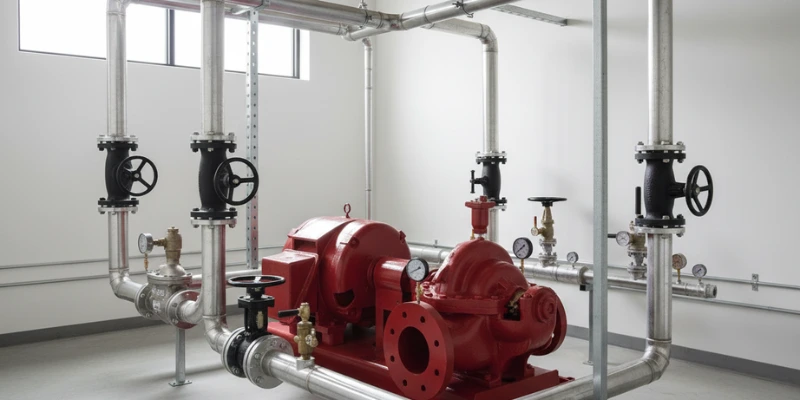

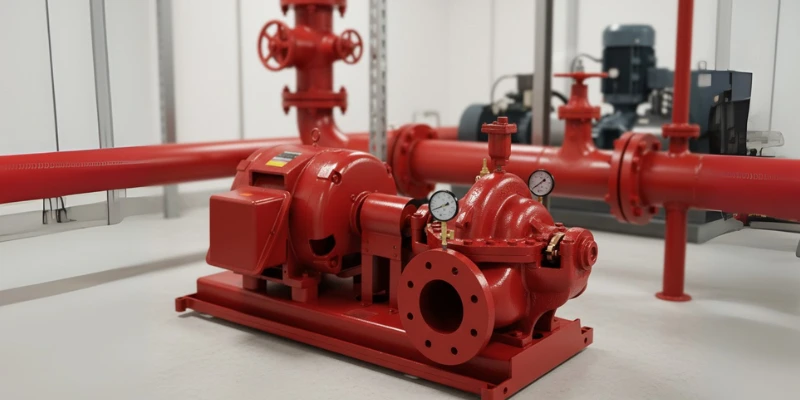

a. Type : FAIRBANKS NIJHUIS Horizontal Split Case Pump
Pump Model : 6” 1823HH, 2950 RPM
Suction Size : 8”, Discharge Size : 6”
Max Power Required : 164 HP
Matr’l : Cast Iron Case, Bronze Impeller, Carbon Steel Shaft
b. Direct Coupled to Western Electric Motor
Power : 175 HP, 3000 RPM/380V/50Hz/3Ph
Enclosure : TEFC (Totally Enclosed Fan Cooled)

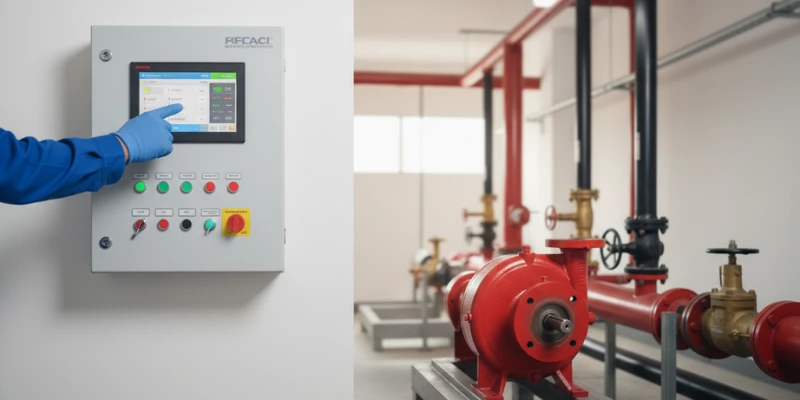

c. C/w Tornatech Electric Fire Pump Controller, NFPA-20
Model : GFY-380V/200HP/3Ph/50Hz,WYE Delta Controllers Open
Transition, Power 200 HP, Voltage 380V-415V, 50 Hz Operation,
Enclosure IP55
